CSP167

24ch BUFFER/DISTRIBUTOR

[Current Store(ja)] [Selection Guide][System Diagram][Catalog]

8ch 8:24 Three distribution
Low noise
High-quality sound
Compact
19 inches 1U size

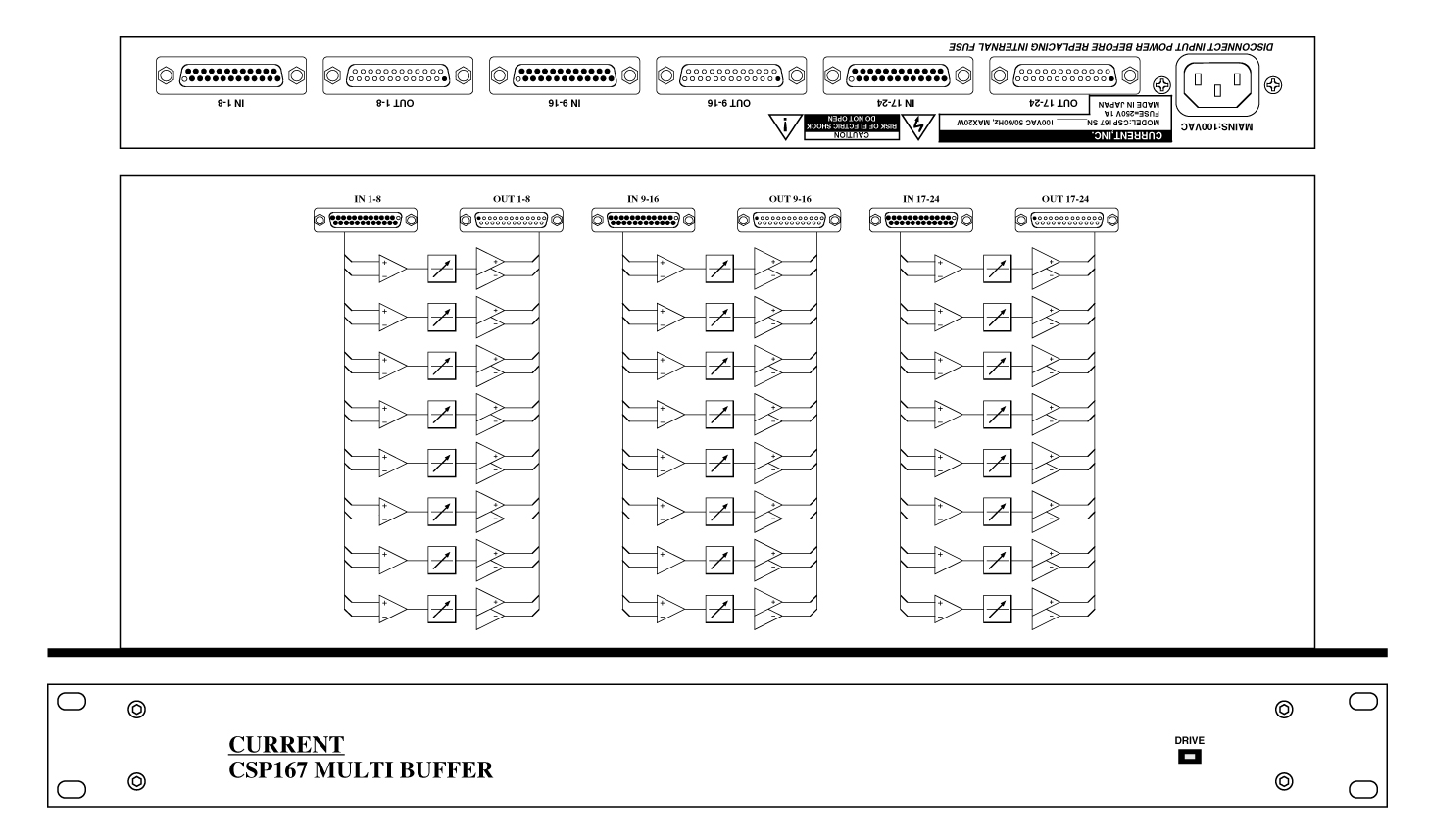

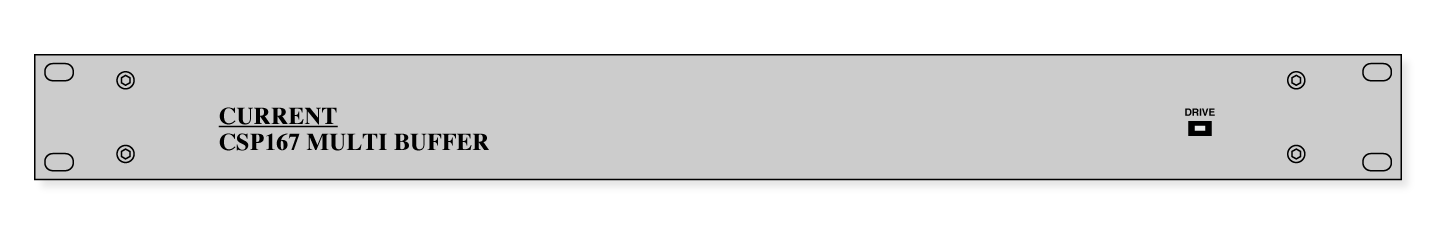

CSP167 is 19 inches 1U size and is audio distributor which can distribute 8ch between 3.
Buffer amplifier is built in it for all input and output and can suppress influence of input-output device which it connected.

“Input”
Input of CSP167 is balance specifications, and connecter is Dsub25-F type.

“Output”
The output of CSP167 is balance specifications, and connecter is Dsub25-M type.

“Application”
There is internal trim in all of 24ch output, and application as matrix amplifier of 8×24 is possible, too.

“Others”
Please refer about manufacturing of connection cable.

■ Specifications
•INPUTS: 8, BALANCED, 8kΩ
•INPUT REFERENCE LEVEL: +4dBu, max +24dBu
•INPUTS CONNECTOR: Dsub25-F (#4-40)
•OUTPUTS: 8, 50Ω BALANCED
•OUTPUT REFERENCE LEVEL: +4dBu, max +24dBu
•OUTPUTS CONNECTOR: Dsub25-M (#4-40)
•FREQUENCY RESPONSE: 20~20kHz ±0.1dB
•THD: < 0.01% at 1kHz, REFERENCE LEVEL
•NOISE LEVEL: < -90dBu
•MAINS: 100VAC 50/60Hz, MAX 15W
•DIMENSIONS: 482Wx44Hx303D, 4kg

 CSP167 “Audio Inputs” (D25-F #4-40)
 1 AUDIO INPUT 1 +      14 AUDIO INPUT 1 -
 2 AUDIO INPUT 1 GND    15 AUDIO INPUT 2 +
 3 AUDIO INPUT 2 –      16 AUDIO INPUT 2 GND
 4 AUDIO INPUT 3 +      17 AUDIO INPUT 3 -
 5 AUDIO INPUT 3 GND    18 AUDIO INPUT 4 +
 6 AUDIO INPUT 4 –      19 AUDIO INPUT 4 GND
 7 AUDIO INPUT 5 +      20 AUDIO INPUT 5 -
 8 AUDIO INPUT 5 GND    21 AUDIO INPUT 6 +
 9 AUDIO INPUT 6 –      22 AUDIO INPUT 6 GND
10 AUDIO INPUT 7 +      23 AUDIO INPUT 7 -
11 AUDIO INPUT 7 GND    24 AUDIO INPUT 8 +
12 AUDIO INPUT 8 –      25 AUDIO INPUT 8 GND
13 NC
 CSP167 "Audio Oututs" (D25-M #4-40)
 1 AUDIO OUTPUT 1 +     14 AUDIO OUTPUT 1 -
 2 AUDIO OUTPUT 1 GND   15 AUDIO OUTPUT 2 +
 3 AUDIO OUTPUT 2 -     16 AUDIO OUTPUT 2 GND
 4 AUDIO OUTPUT 3 +     17 AUDIO OUTPUT 3 -
 5 AUDIO OUTPUT 3 GND   18 AUDIO OUTPUT 4 +
 6 AUDIO OUTPUT 4 -     19 AUDIO OUTPUT 4 GND
 7 AUDIO OUTPUT 5 +     20 AUDIO OUTPUT 5 -
 8 AUDIO OUTPUT 5 GND   21 AUDIO OUTPUT 6 +
 9 AUDIO OUTPUT 6 -     22 AUDIO OUTPUT 6 GND
10 AUDIO OUTPUT 7 +     23 AUDIO OUTPUT 7 -
11 AUDIO OUTPUT 7 GND   24 AUDIO OUTPUT 8 +
12 AUDIO OUTPUT 8 -     25 AUDIO OUTPUT 8 GND
13 NC

• Order Information

order number description approx. price(US$)
CSP167 24ch Buffer/Disttributor, 19” 1U $4,364
