SC6014

STUDIO CUE BOX

[Current Store(ja)][Selection Guide][System Diagram][Catalog]

Stereo + mono 4
Low noise
High-quality sound
Compact
HPx2, EPx2
The stands with a caster
60mm fader
Panpot
World wide power supply

SC6014 is a studio cue system of stereo + mono 4ch developed for recording studios.
It provides enough powerful monitors for studio work in spite of being a compact style.

“Monitor”
A monitor in a stereo or the mono is possible in SC6014.
It implements 60mm stroke fader and panpot in all channels to control fine balance.

“Stands”
A cue cable and headphone are hung in the stands with a caster for moves.
In the lock mechanism of the front side caster, it prevents a move on the operation.
Additionally, it can use even a desktop without using the stands.

“PSU”
World wide support power supply PS6014 is 1 U size, and a connecter for the 5 macnies is implemented, but there is ability for drive for up to 10.
It supplies monitor source and the ± 15VDC power supply from a console together, and, please connect it from each connecter to CUE box.

“Others”
As suiting headphone, it recommends Sony MDR CD900 (studio specifications).
Additionally, please consider in addition in CSP410 of the master unit and SC8016A of the higher model.
Please refer about the manufacturing of the connection cable of the non-standard.

■ Specifications
[MOTHER FRAME] PMS400: 483Wx132.5Hx350D, 8.5kg
•MAINS: 100VAC 50/60Hz, 50W max
•INPUTS: STEREO=4,MONO=7,BAL24kΩ,REF=+4dBu
•CHANNEL OUT: BALANCED 33Ω,REF LEVEL=+4dBu
[CUE BOX] SC8016A: 282Wx80H x174D3.2kg
•POWER REQUIREMENTS: ±24VDC 0.5A MAX
•INPUTS: STEREO=1, MONO=6, EXT to CUES=2
BALANCED 24kΩ,REF=+4dBu, MAX +24dBu
•INPUT CONNECTOR: NK27-32S
•OUTPUTS LEVEL: MAX 6.25W at 8Ω
•HEADPHONE: > 50Ω
•CONNECTOR: HEADPHONE(1/4″ 3P PHONE),MONO EARPHONE
•CASCADE OUT: NK27-31S
•CUE CABLE: CC8016A 5m
[POWER SUPPLY] PS8016A: 483Wx132.5Hx350D,7kg
•MAINS: 100VAC 50/60Hz, 750W MAX
•DISTRIBUTION: ±24VDC MAX 15 CUE BOX
•SPARE CUE CONNECTOR: NK27-31S
[POWER SUPPLY] PS8016B: 482Wx44Hx303D,5kg
•MAINS: 100VAC 50/60Hz, 100W MAX
•DISTRIBUTION: Dsub25-F(#4-40) x4



Power supply PS6014 (drive 10 boxes)

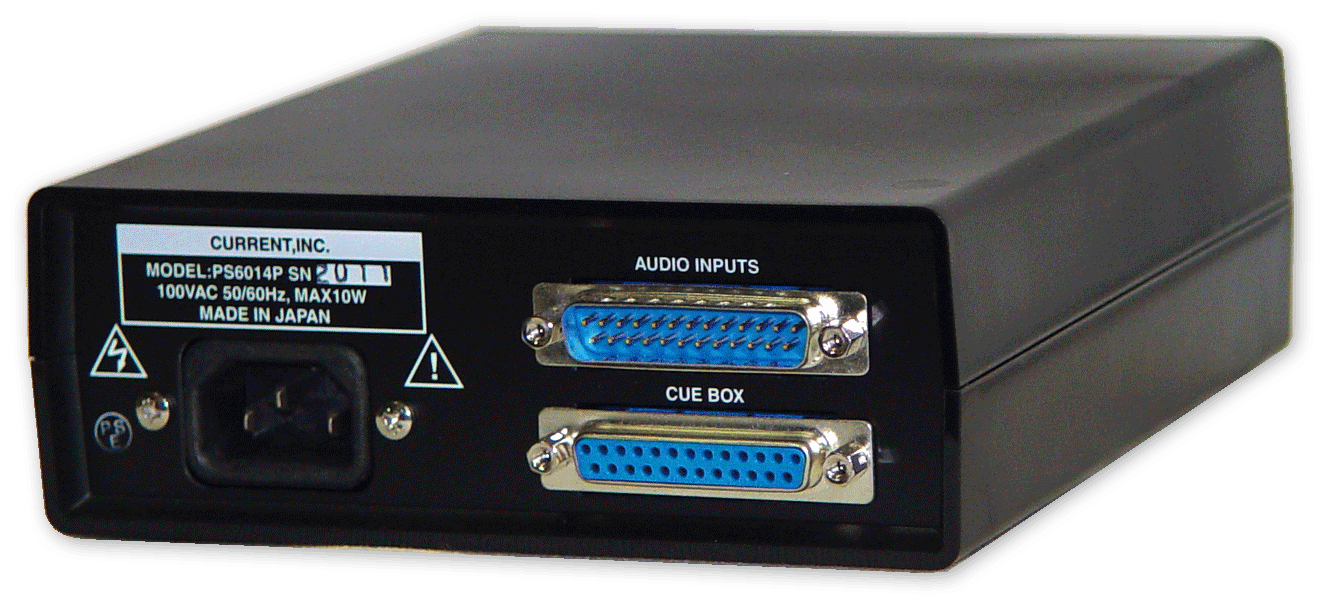

Power supply PS6014P (drive 2 boxes)

   SC6014 D25-M(#4-40) Connector
 1 L+ AUDIO INPUT CUE LEFT +      14 L- AUDIO INPUT CUE LEFT -
 2 LG AUDIO INPUT CUE LEFT GND    15 R+ AUDIO INPUT CUE RIGHT +
 3 R- AUDIO INPUT CUE RIGHT -     16 RG AUDIO INPUT CUE RIGHT GND
 4 1+ AUDIO INPUT CUE 1 +         17 1- AUDIO INPUT CUE 1 -
 5 1G AUDIO INPUT CUE 1 GND       18 2+ AUDIO INPUT CUE 2 +
 6 2- AUDIO INPUT CUE 2 -         19 2G AUDIO INPUT CUE 2 GND
 7 3+ AUDIO INPUT CUE 3 +         20 3- AUDIO INPUT CUE 3 -
 8 3G AUDIO INPUT CUE 3 GND       21 4+ AUDIO INPUT CUE 4 +
 9 4- AUDIO INPUT CUE 4 -         22 4G AUDIO INPUT CUE 4 GND
10 +15V POWER                     23 +15V POWER
11 0V POWER common                24 0V POWER common
12 -15V POWERT                    25 -15V POWER
13 NONE CONNECTION
   PS6014/PS6014P "AUDIO INPUTS" D25-M(#4-40)
 1 AUDIO INPUT CUE LEFT +         14 AUDIO INPUT CUE LEFT -
 2 AUDIO INPUT CUE LEFT GND       15 AUDIO INPUT CUE RIGHT +
 3 AUDIO INPUT CUE RIGHT -        16 AUDIO INPUT CUE RIGHT GND
 4 AUDIO INPUT CUE 1 +            17 AUDIO INPUT CUE 1 -
 5 AUDIO INPUT CUE 1 GND          18 AUDIO INPUT CUE 2 +
 6 AUDIO INPUT CUE 2 -            19 AUDIO INPUT CUE 2 GND
 7 AUDIO INPUT CUE 3 +            20 AUDIO INPUT CUE 3 -
 8 AUDIO INPUT CUE 3 GND          21 AUDIO INPUT CUE 4 +
 9 AUDIO INPUT CUE 4 -            22 4G AUDIO INPUT CUE 4 GND
10 Reserved                       23 Reserved
11 Reserved                       24 Reserved
12 Reserved                       25 Reserved
13 Reserved
   PS6014/PS6014P "CUE BOX" D25-F(#4-40)
 1 CUE LEFT +                     14 CUE LEFT -
 2 CUE LEFT GND                   15 CUE RIGHT +
 3 CUE RIGHT -                    16 CUE RIGHT GND
 4 CUE 1 +                        17 CUE 1 -
 5 CUE 1 GND                      18 CUE 2 +
 6 INPUT CUE 2 -                  19 INPUT CUE 2 GND
 7 INPUT CUE 3 +                  20 INPUT CUE 3 -
 8 INPUT CUE 3 GND                21 INPUT CUE 4 +
 9 INPUT CUE 4 -                  22 INPUT CUE 4 GND
10 +15V POWER OUTPUT              23 +15V POWER OUTPUT
11 0V POWER                       24 0V POWER
12 -15V POWER OUTPUT              25 -15V POWER OUTPUT
13 NONE CONNECTION

• Order Information

order number description approx. price(US$)
SC6014 stereo + 4 mono, CUE box $1,800
SC6014-1 CUE BOX, STANDLESS $1,440
PS6014 Power supply max=10 box $1,523
PS6014P Power supply max=2 $727
CSP410 CUE master, EQ, TB, 19” 1U $2,667
SC5014 stereo + 4 mono, CUE box $754
CC6014-01 CUE cable 1m D25F — D25M $182
CC6014-02 CUE CABLE 2m D25F — D25M $209
CC6014-03 CUE CABLE 3m D25F — D25M $218
CC6014-05 CUE CABLE 5m D25F — D25M $227
CC6014-07 CUE CABLE 7m D25F — D25M $291
CC6014-10 CUE CABLE 10m D25F — D25M $318
CC6014-15 CUE CABLE 15m D25F — D25M $364
CC6014-20 CUE CABLE 20m D25F — D25M $436
CC6014-IX005 PS6014/P input cable XLR 50cm $255
CC6014-IX01 PS6014/P input cable XLR 1m $255
CC6014-IX02 PS6014/P input cable XLR 2m $264
CC6014-IX03 PS6014/P input cable XLR 3m $273
CC6014-IX05 PS6014/P input cable XLR 5m $291
CC6014-IX07 PS6014/P input cable XLR 7cm $345
CC6014-IX10 PS6014/P input cable XLR 10m $436
CC6014-PP CUE parallel cable 15cm $65
CSP939 Dsub25 bus 3-para $109
SC8016A stereo + 6 mono, CUE box, standard $3,864
MP421 HEADPHONE AMP $509
