CSP166

MONITOR UNIT

[Current Store(ja)] [Selection Guide][System Diagram][Catalog]

Simple monitor unit
Monitor cut
Variable DIM level
Balance
XLR input and output
19 inches 1U size

CSP166 is monitor unit of simple configuration, and input and output is balance specifications of XLR connecter.
It is equipment which is convenient in cases when variable just wants to do level before power amp.
In compact 19 inches 1U size, implementation in system rack is easy.

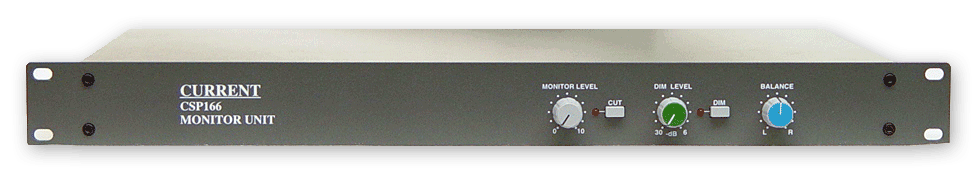

“Front panel”

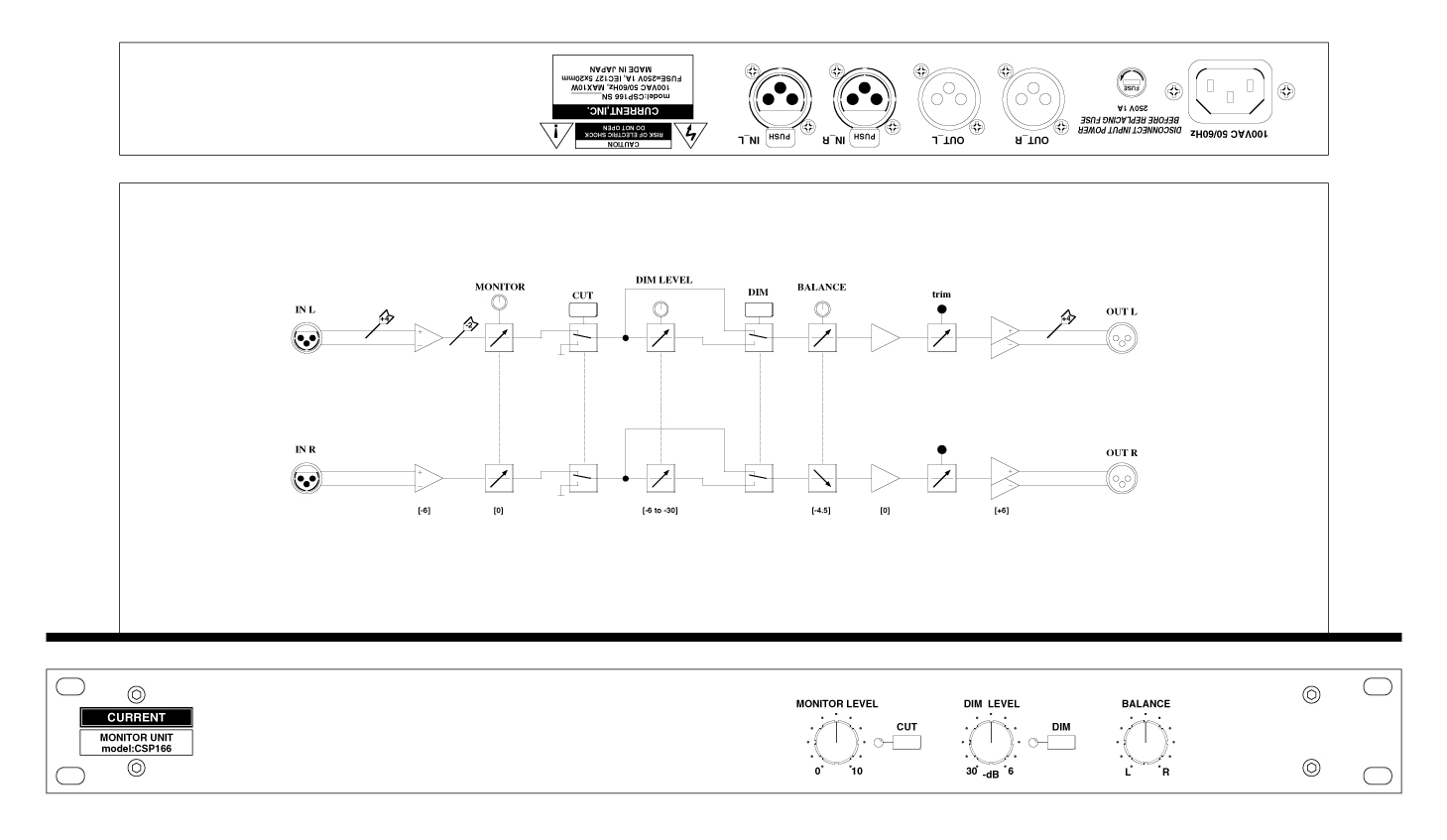

With front panel, there are monitor level, monitor cut switch, DIM level, DIM switch, control of balance.
It is possible for continuous variables to level DIM to -6dB to -30dB.

“Others”
When you require multifunctional monitor unit, please consider in CSP347, CSP349, MP463.

■ Specifications
•INPUTS: STEREO, BALANCED, 12kΩ
•INPUT REFERENCE LEVEL: +4dBu, max +24dBu
•INPUTS CONNECTOR: XLR3-F
•OUTPUTS: STEREO 50Ω BALANCED
•OUTPUT REFERENCE LEVEL: +4dBu, max +24dBu
•OUTPUTS CONNECTOR: XLR3-M
•FREQUENCY RESPONSE: 20~20kHz ±0.1dB
•THD: < 0.01% at 1kHz, REFERENCE LEVEL
•NOISE LEVEL: < -90dBu
•MAINS: 100VAC 50/60Hz, MAX 15W
•DIMENSIONS: 482Wx44Hx303D, 4kg

• Order Information

order number description approx. price(US$)
CSP166 Stereo, dim, balance, 19” 1U $2,255
