FU305

MICFADER

[Current Store(ja)][Selection Guide][System Diagram][Catalog]

Microphone preamplifier with fader
48V phantom power
Microphone, line compatible
Remote cut
High pass filter
100mm stokes fader
Compact

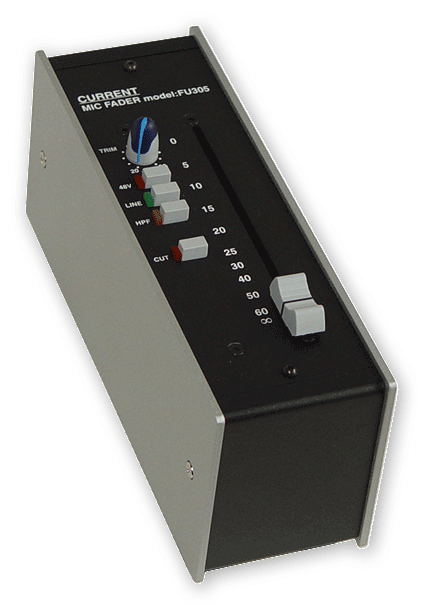

FU305 is a mono fader box with microphone preamplifier.
The high-performance preamplifier circuit that adapted to a microphone and the line provides sound of high quality in various scenes such as a studio, the live.
It allows the fine control in slim body and long stroke fader.

“Input and output”
Each input and output of FU305 is balance specifications.
It can supply the 48V phantom power with the microphone mode, too.

“48V”
It can supply 48V power for condenser microphones with the microphone mode.

“LINE”
When it changes it to line input, it allows an input level to +24dBu by 26dB PAD.
Even if a 48V switch was ON in the line mode, it is OFF automatically, and the phantom power is not supplied.

“HPF”
It is HPF of 80Hz to use for the purpose of reducing low frequency noises (low cut filter).

“CUT”
The noiseless CUT switch which performs mute of the output allows use as the cough.

“Fader”
It uses the conductive plastic fader of the 100mm stroke for FU305, and stable level control is possible, and there is little secular change.

“Others”
The RJ11 connecter of the rear panel allows CUT from external.

■ Specifications
•PREAMP CHANNEL: 1 CHANNEL
•INPUTS CONNECTOR: XLR3-F
•OUTPUTS CONNECTOR: XLR3-M
•INPUT IMPEDANCE: 1.8kΩ
•OUTPUT IMPEDANCE: 50Ω
•MAX INPUT LEVEL: +24dBu (at 20dB gain with LINE switch)
•MAX OUTPUT LEVEL: +24dBu
•HPF: 80Hz 12dB/oct
•FREQUENCY RESPONSE: 10~100kHz ±0.1dB
•THD: < 0.002% at 1kHz, REF LEVEL (20-20kHz unweighted)
•E.I.N.: < -128dBu at 60dB gain (20-20kHz unweighted)
•CONTROL: 48V PHANTOM, MIC GAIN, HPF, CUT
•REMOTE CONNECTOR: Modular RJ11-2P TYPE
•MAINS: 100VAC 50/60Hz, MAX 2W

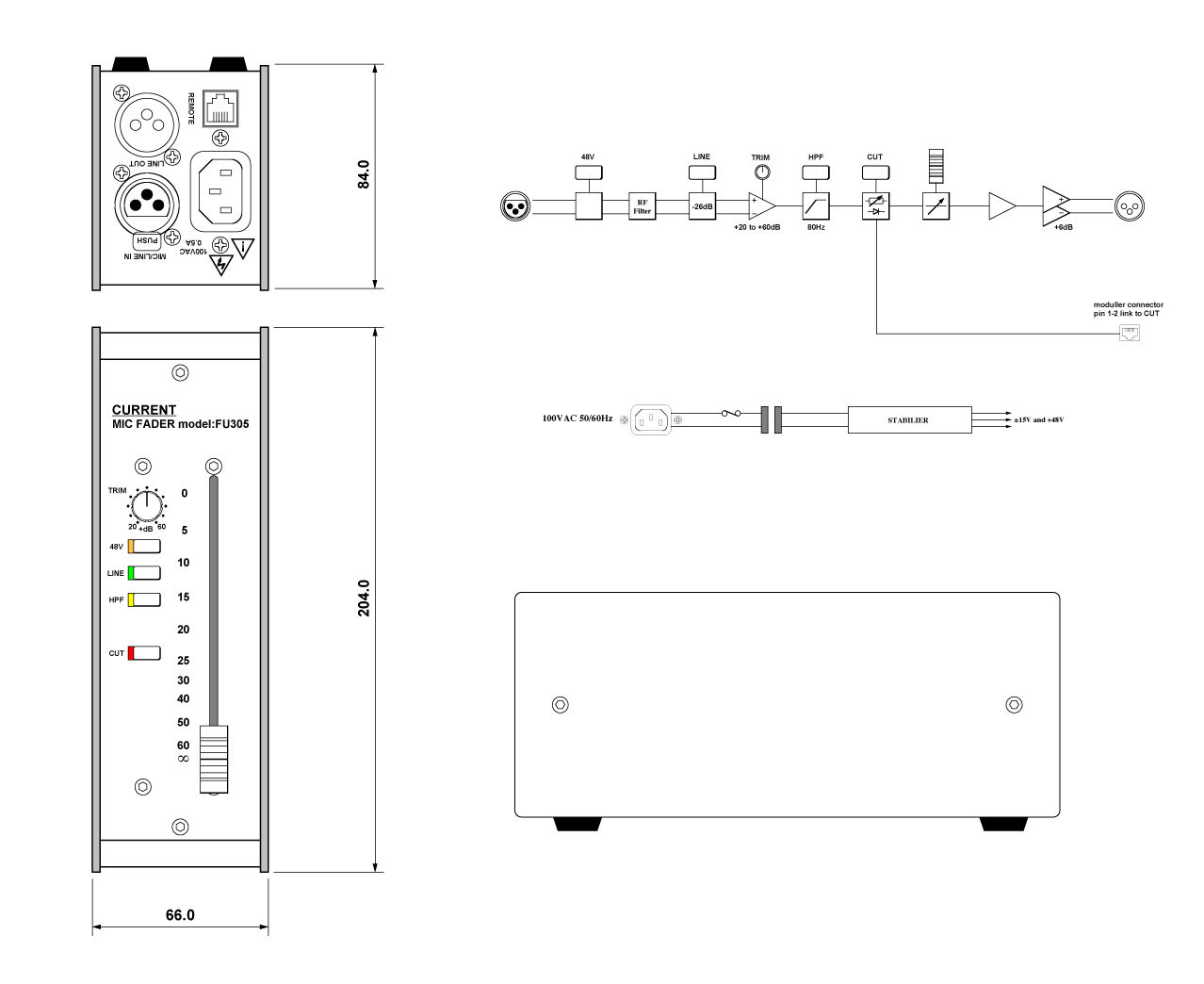

•DIMENSIONS: 66Wx84Hx204D, 1kg

 “REMOTE CUT” RJ6 Modular
1 NC
2 NC
3 CUT
4 GND
5 NC
6 NC
