AF217

STUDIO INTERFACE

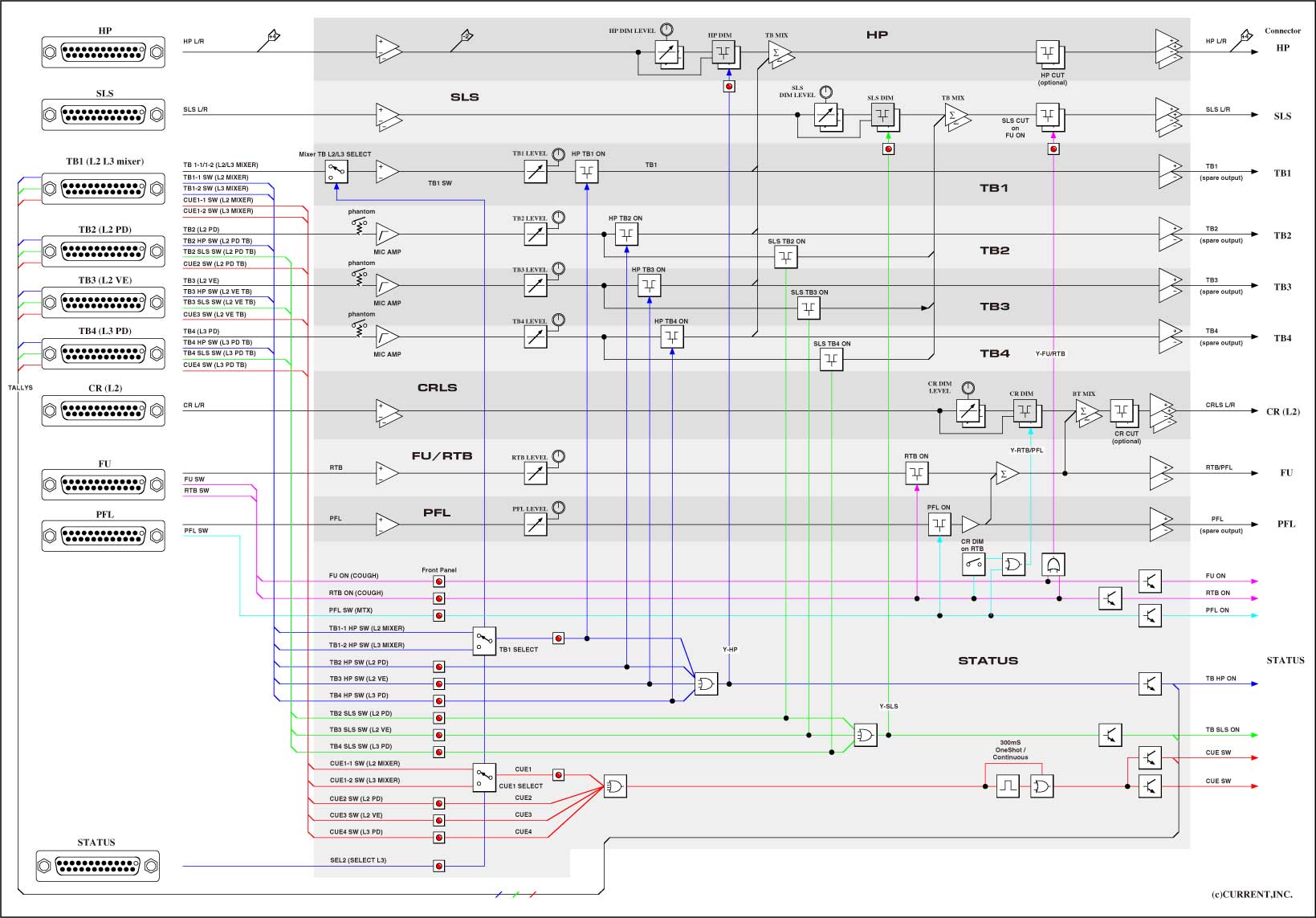

[Current Store(ja)] [Selection Guide][System Diagram][Catalog]

Multifunctional studio interface
4 system talkback
HP monitor
Studio speaker control
CR monitor control
RTB control
PFL control
Various tarry indication
Low noise, high-quality sound

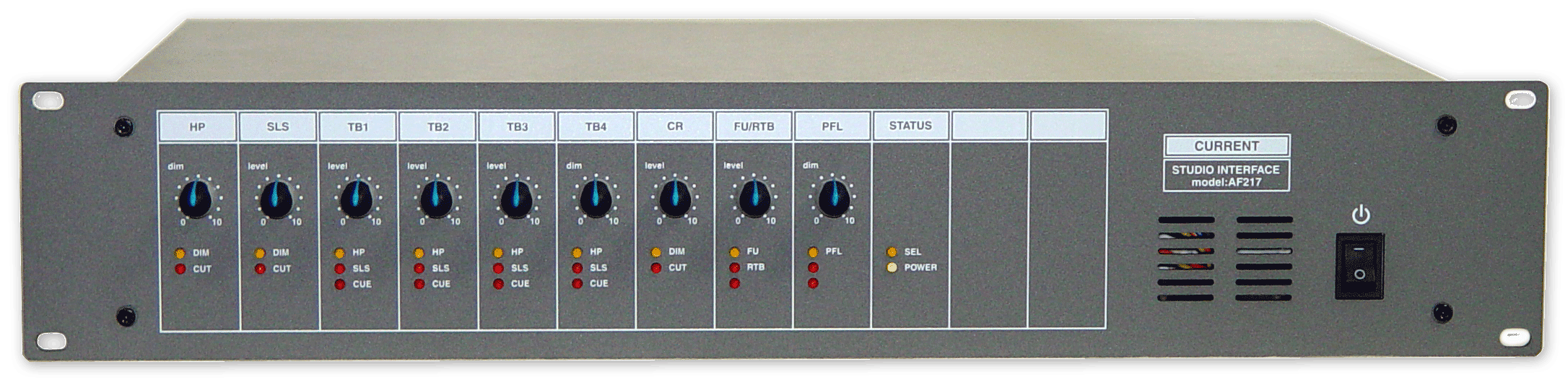

19 inches 2U size

AF217 is management studio interface by the communication in control room and the booth.
It is most suitable for the various control such as the talkback system of 4 systems, a cough system, the monitor speaker.

“Program”
SLS and the control of 2 systems of the HP are possible.
Variable DIM works with front panel in the TB in all.

“Talkback”
It is equipped with a microphone amplifier of the compressor buit-in, and, among 4 systems, 2-4 can set an individual level with front panel.

“CR monitor”
Variable DIM works with front panel when RTB or PFL is ON.

“RTB, PFL”
These mix it and are output, but can set an individual level with front panel.

“Tarry”
The various tarry indication to indicate workings such as TB or CUE makes operation check at the systems construction easy.
Furthermore, it is helpful to know the working of the system at the time of the use precisely.

“Others”
Please refer as the module-style structure allows flexible support for special specifications.

■ Specifications
•I/O CONNECTOR : Dsub25-F(#4-40)
•INPUTS IMPEDANCE : 24kΩ, REF=+4dBu MAX=+24dBu
•OUTPUTS IMPEDANCE: 50Ω, REF=+4dBu MAX=+24dBu
•DIM LEVEL: ∞ ~ 0dB
•FREQUENCY RESPONSE: 20~20kHz ±0.1dB
•THD: < 0.01% at 1kHz, REF LEVEL (20~20kHz unweighted)
•NOISE: < -90dBu
•MAINS: 100VAC 50/60Hz, MAX 40W
•DIMENSIONS: 482Wx88Hx302D, 5kg

 AF217 “HP” CONNECTOR PIN LIST (D25-F #4-40)
 1 HP SOURCE INPUT L+ 14 HP SOURCE INPUT L-
 2                    15 HP SOURCE INPUT R+
 3 HP SOURCE INPUT R- 16
 4                    17
 5 GND                18
 6                    19 GND
 7 HP SEND L+         20 HP SEND L-
 8                    21 HP SEND R+
 9 HP SEND R-         22 GND
10 +15V SUPPLY        23 -15V SUPPLY
11 GND                24 EXT DIM SWITCH (opt)
12 EXT CUT SW (opt)   25 EXT CONTROL COMMON (opt)
13

 AF217 "SLS" CONNECTOR PIN LIST (D25-F #4-40)
 1 SOURCE INPUT L+    14 SOURCE INPUT L-
 2 GND                15 SOURCE INPUT R+
 3 SOURCE INPUT R-    16 GND
 4                    17
 5 GND                18
 6                    19 GND
 7 SLS SEND L+        20 SLS SEND L-
 8 GND                21 SLS SEND R+
 9 SLS SEND R-        22 GND GND
10 +15V SUPPLY        23 -15V SUPPLY
11 GND                24 EXT DIM SWITCH (opt)
12 EXT CUT SW (opt)   25 EXT CONTROL COMMON (opt)
13

 AF217 "TB1" CONNECTOR PIN LIST (D25-F #4-40)
 1 TB INPUT 1+        14 TB INPUT 1
 2 GND                15 INPUT 2+
 3 INPUT 2-           16 GND
 4 SEND 1+ (optional) 17 SEND 1- (optional)
 5 GND                18
 6                    19
 7 SWITCHES COM 0V    20 LAMPS COMMON +5V
 8 TB HP SWITCH       21 TB HP LAMP
 9 TB SLS SWITCH      22 TB SLS SWITCH
10 CUE SWITCH         23 CUE LAMP
11 TB HP SWITCH 2     24
12 CUE SWITCH 2       25
13

 AF217 "TB2" CONNECTOR PIN LIST (D25-F #4-40)
 1 TB INPUT +         14 TB INPUT -
 2 GND                15 TB INPUT 2+
 3 TB INPUT 2-        16 GND
 4 TB SEND 2+ (opt)   17 TB SEND 2- (opt)
 5 GND                 18
 6                    19
 7 SWITCHES COM 0V    20 LAMPS COMMON +5V
 8 TB HP SWITCH       21 TB HP LAMP
 9 TB SLS SWITCH      22 TB SLS SWITCH
10 CUE SWITCH         23 CUE LAMP
11 TB HP SWITCH 2     24
12 CUE SWITCH 2       25
13

 AF217 "TB3" CONNECTOR PIN LIST (D25-F #4-40)
 1 TB INPUT +         14 TB INPUT -
 2 GND                15 TB INPUT 2+
 3 TB INPUT 2-        16 GND
 4 TB SEND 3+ (opt)   17 TB SEND 3- (opt)
 5 GND                18
 6                    19
 7 SWITCHES COM 0V    20 LAMPS COMMON +5V
 8 TB HP SWITCH       21 TB HP LAMP
 9 TB SLS SWITCH      22 TB SLS SWITCH
10 CUE SWITCH         23 CUE LAMP
11 TB HP SWITCH 2     24
12 CUE SWITCH 2       25
13

 AF217 "TB4" CONNECTOR PIN LIST (D25-F #4-40)
 1 TB INPUT +         14 TB INPUT -
 2 GND                15 TB INPUT 2+
 3 TB INPUT 2-        16 GND
 4 TB SEND 4+ (opt)   17 TB SEND 4- (opt)
 5 GND                18
 6                    19
 7 SWITCHES COM 0V    20 LAMPS COMMON +5V
 8 TB HP SWITCH       21 TB HP LAMP
 9 TB SLS SWITCH      22 TB SLS SWITCH
10 CUE SWITCH         23 CUE LAMP
11 TB HP SWITCH 2     24
12 CUE SWITCH 2       25
13

 AF217 "CR" CONNECTOR PIN LIST (D25-F #4-40)
 1 SOURCE INPUT L+    14 SOURCE INPUT L-
 2 GND                15 CR SOURCE INPUT R+
 3 CR SOURCE INPUT R- 16 GND
 4                    17
 5 GND                18
 6                    19 GND
 7 CR SEND L+         20 CR SEND L-
 8 GND                21 CR SEND R+
 9 CR SEND R-         22 GND
10 +15V SUPPLY        23 -15V SUPPLY
11 GND                24 EXT DIM SWITCH (opt)
12 EXT CUT SW (opt)   25 EXT CONTROL COMMON (opt)
13

 AF217 "FU/RTB" CONNECTOR PIN LIST (D25-F #4-40)
 1 RTB INPUT +        14 RTB INPUT -
 2 GND                15 INPUT 2+
 3 INPUT 2-           16 GND
 4 RTB/PFL OUT +      17 RTB/PFL OUT -
 5 GND                18
 6                    19
 7 SWITCHES COM 0V    20 LAMPS COM +5V
 8 FU SWITCH          21 FU LAMP
 9 RTB SWITCH         22 RTB SWITCH
10 CUE SWITCH         23 CUE LAMP
11 TB HP SWITCH 2     24
12 CUE SWITCH 2       25
13

 AF217 "PFL" CONNECTOR PIN LIST (D25-F #4-40)
 1 PFL INPUT +        14 PFL INPUT -
 2 GND                15 INPUT 2+
 3 INPUT 2-           16 GND
 4 PFL OUT + (OPT)    17 PFL OUT - (OPT)
 5 GND                18
 6                    19
 7 SWITCHES COM 0V    20 LAMPS COM +5V
 8 PFL SWITCH         21 PFL LAMP
 9 TB SWITCH          22 TB SWITCH
10 CUE SWITCH         23 CUE LAMP
11 TB HP SWITCH 2     24
12 CUE SWITCH 2       25
13

 AF217 "STATUS" CONNECTOR PIN LIST (D25-F #4-40)
 1 SWITCHES COM 0V    14 LAMPS COM +5V
 2                    15 TB-HP TALLY
 3                    16 TB-SLS TALLY
 4                    17 CUE TALLY 1
 5                    18 CUE TALLY 2
 6                    19 FU TALLY
 7                    20 RTB TALLY
 8                    21 PFL TALLY
 9 TB1-1/TB1-2 SELECT 22
   (Lo=TB1-2)
10                    23
11                    24
12                    25
13
