8ch microphone, line amplifier
Redundant power supply
Transformer for input and output
Input impedance switch
10 points level meters
High-quality sound 19 inches 3U size
48V phantom power supply
19 inches 3U size

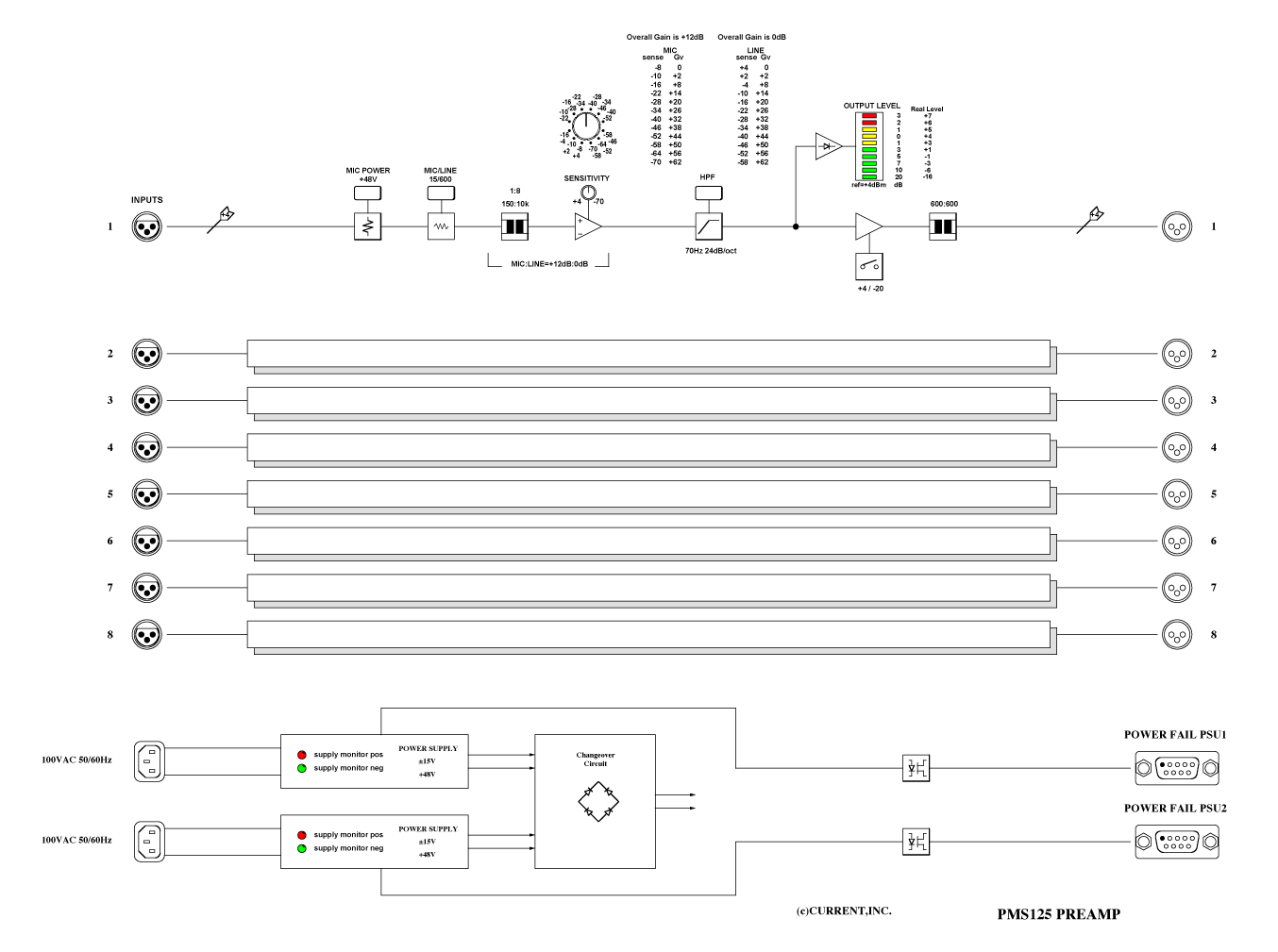

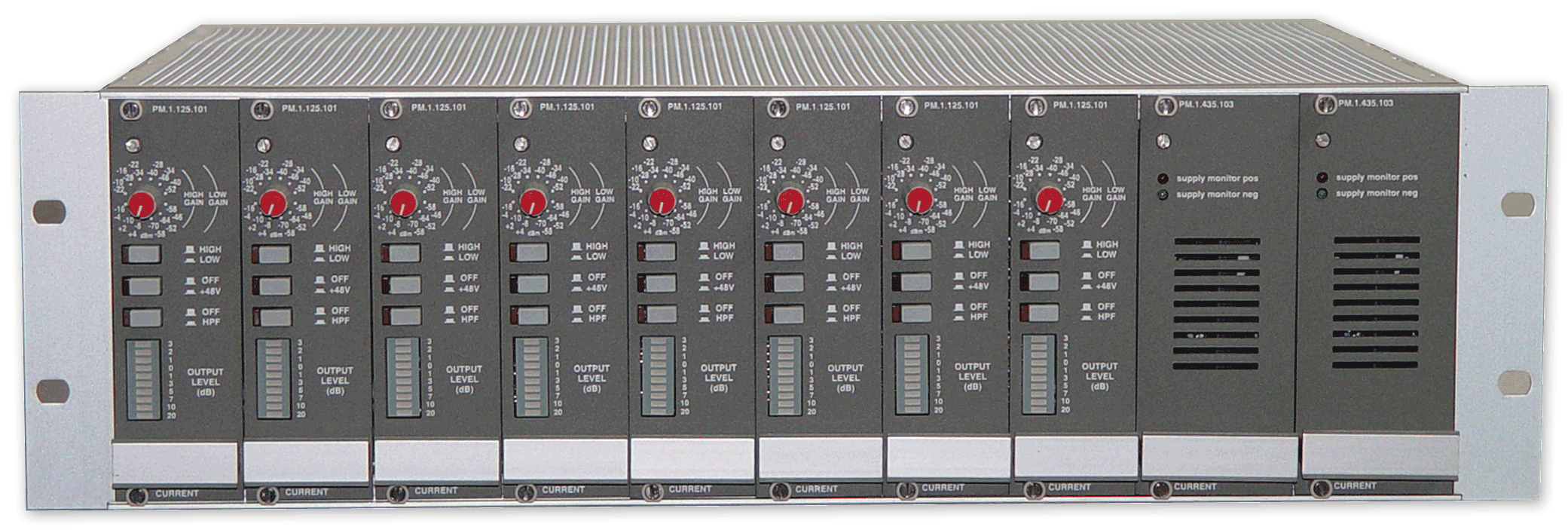

PMS125 is 8ch microphone line amplifier configured with a 19 inches 3U size frame.
The Jensen carefully made transformer which it adopted for input and output realizes superior CMRR (common-mode signal rejection ratio) and reliable signal transmission.
Moreover, by the design that careful consideration was accomplished, it shows the best performance with superior S/N, high-quality sound in a studio, a hall, a stadium and every spot such as the broadcast.

The input impedance can choose 150 Ω or 600 Ω.
An input sensitivity level corresponding to each is indicated in a gain trim.
Moreover, it can supply the +48V power for condenser microphones.

+4dBu or -20dBu can set the output reference level with an internal switch.
(in factory +4)

It can cut an unnecessary low frequency noise in implemented 70Hz, a high pass filter of 24dB/oct sharply.

It allows monitoring of the output level to -20 to +3dB in 10 points of LED bar graph.

A make contact by the MOS relay is output in case of trouble to each redundancy power supply unit.

Please refer about the change of input impedance and the gain.

■ Specifications
•INPUTS 1-8: Transformer balanced 150Ω / 600Ω, XLR3-F
•OUTPUTS 1-8: Transformer balanced 600Ω, XLR3-F
•High Gain trim: -70dBm~-8dBm(z=150Ω)
•Low Gain trim: -58dBm~+4dBm(z=600Ω)
•HPF: 70Hz 24dB/oct
•Phantom power: +48V
•FREQ.RESPONSE: 20 to 20kHz ±1dB
•THD: <0.01% at 1kHz ref.level
•Power fail: Photo-MOS RELAY, Dsub9-M (#4-40)
•DIMENSIONS: 483Wx132.5Hx350D 6kg

  Power Fail DSUB9-M
01 contact-a   06 contact-b
02             07
03             08
04             09

• Order Information

order number description approx. price(US$)
PMS125-F Main frame $6,545
