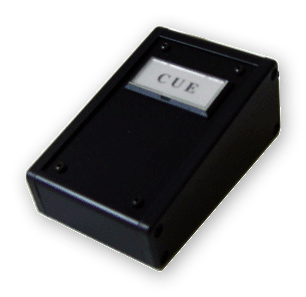

Cue lamp box
Tarry display of every kind
High intensity LED
Compact
It is cue lamp box which AF206 connects with cough box, and is available.
Compact size allows setting at position that it is easy to see.
“CUE”
CUE lamp emits light in super red with high visibility.
In addition, change of name is applicable for other purposes because it is easily possible by changing film.
“Connection”
It has used modular jack for connecter and can be easily connected with commercial cable.
Power supply supports in 12 to 24VDC, and cable can use even cross by straight because polarity does not matter.
“Others”
In the case of front display, please consider in AF205A.
In addition, please refer about manufacturing of larger type and multiple display types.

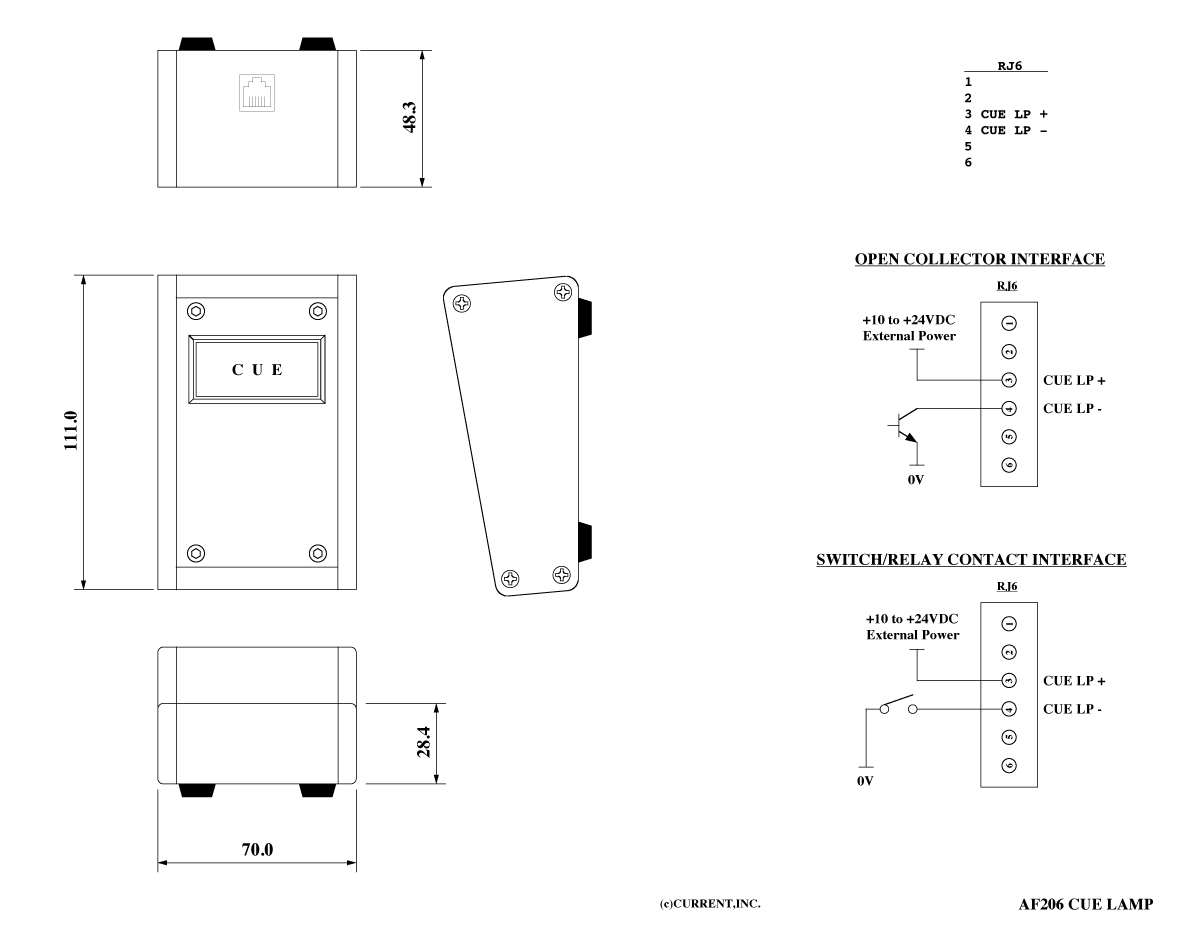

■ Specifications
•CONNECTOR: RJ11 modular jack
•CUE COLOR: SUPER RED
•CUE VOLTAGE: 9 to 24VDC, 20mA, without polarity
•INDICATOR SIZE: 44×20
•DIMENSIONS: 70Wx47Hx112D, 0.3kg
"RJ6 Modular" 1 NC 2 NC 3 CUE LP + 4 CUE LP - 5 NC 6 NC
• Order Information
| order number | description | approx. price(US$) |
|---|---|---|
| AF206 | Top display | $327 |
| AF124 | Cough box, touch, fader, HP, EP | $1,800 |
| AF124T | Cough Unit, T-Bar, HP, EP | $2,709 |
| AF205A | Front display | $291 |
| AF205B | Front display, ac powered | $582 |
| AF245 | CUE Lamp | $145 |
