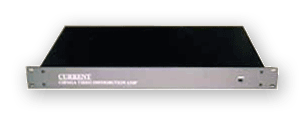

CSP441A

VIDEO DISTRIBUTION AMP 1:2×4

[Current Store(ja)][Selection Guide][System Diagram][Catalog]

Four 1:2 video distribution
Or two 1:4 distribution
Or 1:6+1:2 distribution
Or 1:8 distribution
Most suitable for VGA monitor distribution
19 inches 1U size

The CSP441A provides in 4 video distribution circuits of 1:2.
Mode switching of 1:2×4, 1:4×2, 1:6+1:2 and the 1:8 is a possible video distributor when it links each.
Each output is that it is driven with an independent amplifier, and distribution of high quality is possible.

“Mode switch”

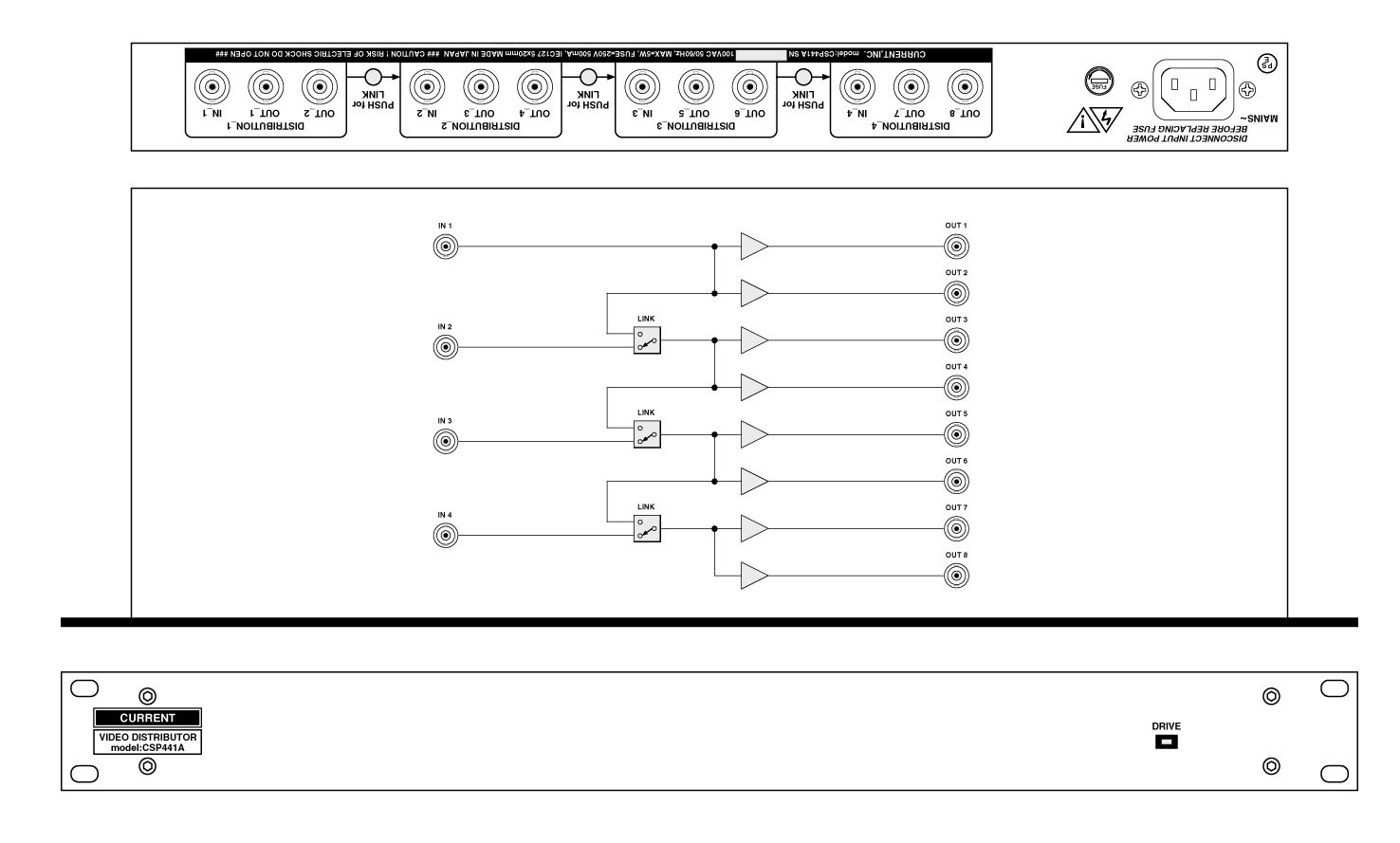

It can easily set a distribution format by the setting of the link switch of the rear panel.
It is four 2 distribution in the normal condition.
It can choose one of two 4 distribution, 6 distribution +2 distribution and 8 distribution by a switch combination.

“Others”
When it uses it in SSL9000J, it is necessary to change internal resistance because sync is a TTL level.
In addition, please refer about the distribution format of the non-standard.
CSP441 of the distribution configuration of 1:4×2 or the 1:8 also available.

■ Specifications
•INPUTS IMPEDANCE: 75Ω 1Vp-p
•INPUTS CONNECTOR: BNC
•OUTPUTS IMPEDANCE: 75Ω1Vp-p
•OUTPUTS CONNECTOR: BNC
•FREQUENCY BANDWIDTH: 7MHz
•MODE: 1:2 x4, 1:4×2, 1:6+1:2, 1:8 SELECTABLE
•MAINS: 100VAC 50/60Hz MAX=5W
•DIMENSIONS: 482Wx44Hx303D 4Kg
