AF224

COMMUNICATOR

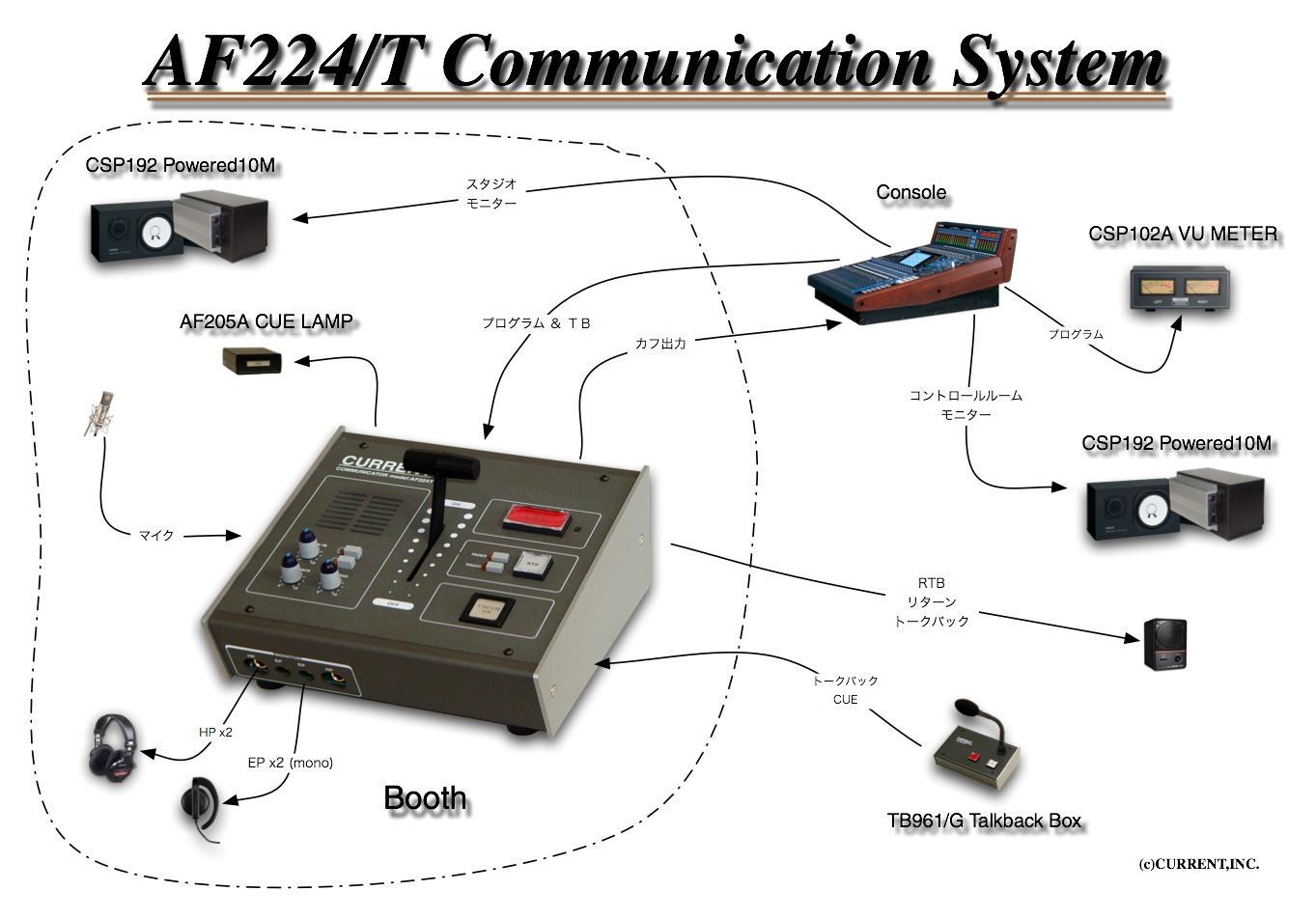

[Current Store(ja)][Selection Guide][System Diagram][Catalog]

Complete standalone working (AC working)
Touch switch, fader, T-bar
RTB (return talkback)
CUE lamp
Monitor speaker
XLR connector
48V microphone power
TB level
DIM level
Plural stand links
Stereo headphone, mono earphone

AF224 is the cough box which had built-in microphone preamplifier and can operate it in a touch switch, fader or T-bar.
It has built-in 48V phantom power supply in a microphone amplifier circuit, and the monitor is possible with headphone, an earphone and the speaker.
The XLR connector used for main input-output does the setup in the field to Easy.
Furthermore, the communication system is completion only in AF224 by being the complete all-in-one that the TB box can be directly connected to.

“Microphone amplifier”
The microphone amplifier of AF224 of high quality has a gain trim of the +20 to +60dB and can supply the +48V phantom power supply, too.
The line output is controlled in a touch switch, fader or T-bar.

“CUE lamp ”
When CUE button is pushed in a TB box, CUE lamp of AF224 turns on.
In addition, it can connect external CUE lamp AF205A (Sold separately) in one-touch.

“Cough control”
The cough output controlled in a touch switch, fader is output to a line out.
Using logics such as a cough state or the RTB output by ‘COMMUNICATION’ connector, it can be connected to the external control port of a VCA unit and the console directly.
A touch switch, fader or the T-bar is selectable on a panel.

“Talkback”
It can be directly connected to TB box TB961 in AF224.
The TB microphone amplifier which had built-in compressor is enabling the communication that the clarity is high.
In addition, forced cough ON is possible when it uses ‘TB963-224′ of 3 button specifications.
It can input the TB signal in line level by the change over of the internal switch from external.

“RTB”
Return talkback is possible with an RTB button.
In addition, the control signal to use for consoles is output.
The built-in speaker is cut on RTB.
It is usual in the RTB output, and a signal just after the microphone preamplifier is spent.
It is not necessary to prepare for an RTB microphone separately when it changes it to a mode inputting a TB signal in line level from the ext because the signal of the built-in microphone is sent.

“Link”
It can let TB of two AF224, CUE link in one TB box when they link with RJ45 connector of the rear panel.
In addition, it only connects it to only either one and finishes it because monitor input L or R and the RTB output are linked to.

“Others”

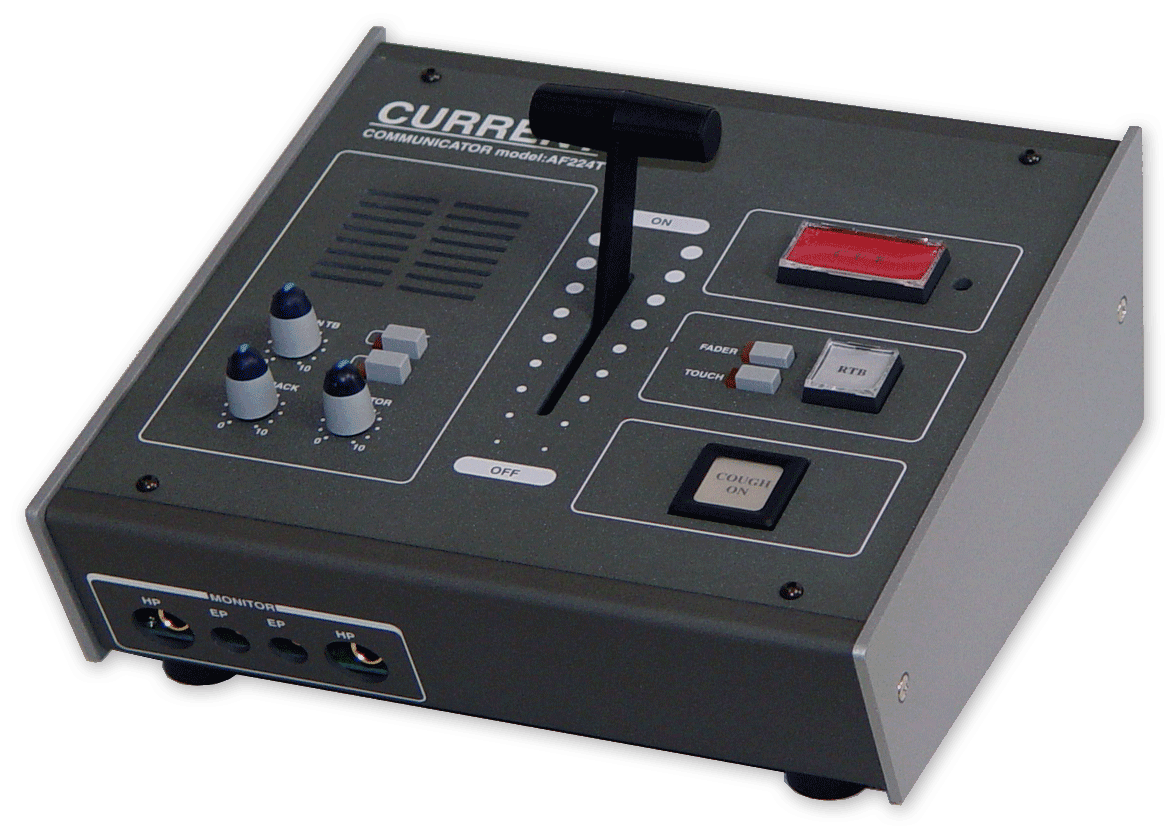

AF224T of the T-bar type available.

■ Specifications
•MIC INPUT: BALANCED, 1.8kΩ, XLR3-F •MIC GAIN: +20~+60dB, +48V MIC POWER •MONITOR INPUT: +4dBu, STEREO BALANCED, 36kΩ, XLR3-F •LINE OUTPUT: BALANCED, 50Ω, XLR3-M
•RTB OUTPUT: BALANCED, 600Ω, XLR3-M
•COMMUNICATION: Dsub-25F (#4-40)
•CONTROL: Touch Switch(green), MONITOR LEVEL/CUT, RTB •DISPLAY: CUE LAMP (red)
•EXT CUE LAMP: RJ11-2P  •LINK: RJ45
•TB-BOX: D15-F(#4-40)
•SPEAKER: MAX=0.1W
•HEADPHONES:1/4″ STEREO, x2 >50Ω, MAX=0.1W
•EARPHONES: MONO x2 •POWER: 100VAC 50/60Hz, max 15W
•DIMENSIONS: 206Wx84Hx204D 2kg

 TALKBACK BOX Dsub15-F(#4-40)
01                     09
02 LP COM +15V         10 SW COM
03 TB SW               11
04 CUE SW              12
05 FU SW               13 FU LP
06                     14
07 MIC +5V             15 MIC GND
08 MIC signal
 "COMMUNICATION" Dsub25-F(#4-40)
01 FU COMMAND +        14 FU COMMAND -
02 CUE LAMP            15 CUE SWITCH
03 FU LINE OUT +       16 FU LINE OUT -
04 RTB LAM             17 RTB SWITCH
05 RTB OUTPUT +        18 RTB OUTPUT -
06 MONITOR IN L+       19 MONITOR IN L-
07 MONITOR IN R+       20 MONITOR IN R-
08 +15V                21 +15V
09 0V                  22 0V
10 -15V                23 -15V
11 FORCE FU SWITCH     24 EXT TB SWITCH
12 EXT TB IN +         25 EXT TB IN -
13
 "LINK" RJ-45
1 RTB+/MON_R+
2 RTB-/MON_R-
3 L-MON+
4 MIC SIG
5 MIC GND
6 L-MON-
7 TB SW
8 CUE SW
 "EXT CUE" RJ-6
1 NC
2 FU_LINK
3 CUE LP+
4 CUE LP-
5 GND
6 NC

• Order Information

order number description approx. price(US$)
AF224 Cough box, touch, fader, HP, EP, SP, CUE $2,709
AF224T Announce Fader Unit $3,618
TB961-224 TB box, TB, CUE, AF224 $582
TB961G-224 TB box, TB, CUE, Gooseneck 15cm, AF224 $891
TB963-224 TB box TB, CUE, FU, AF224 $618
TB963G-224 TB box, TB, CUE, FU, Gooseneck 15cm. AF224 $900
AF224-W05 TB box cable 5m $291
AF224-W10 TB box cable 10m $364
