PMS470

MATRIX AMP 16×16

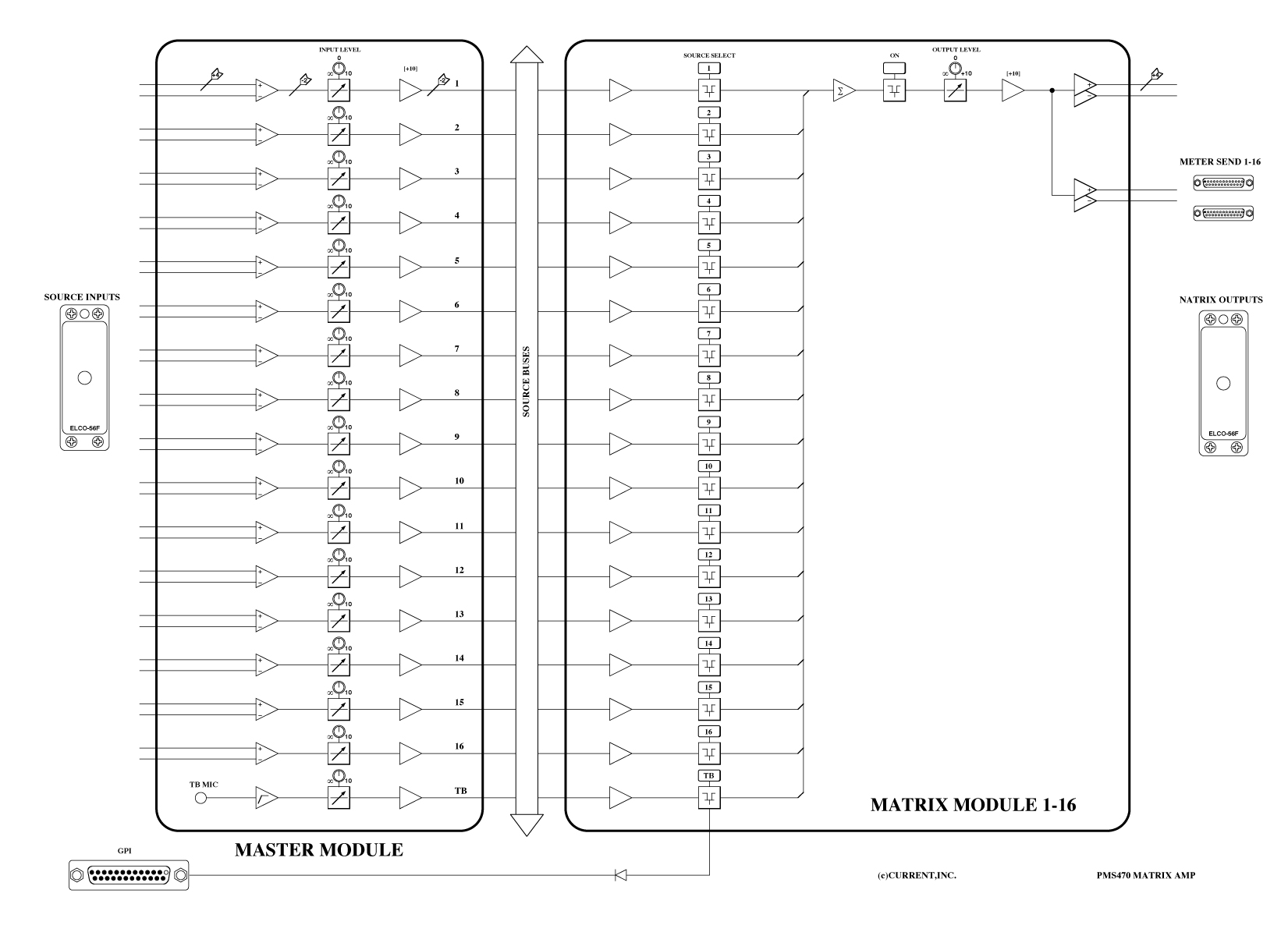

[Current Store(ja)] [Selection Guide][System Diagram][Catalog]

16×16 matrix amplifier
Talkback individual in all output
Trim for all input-output
19inches 6U size

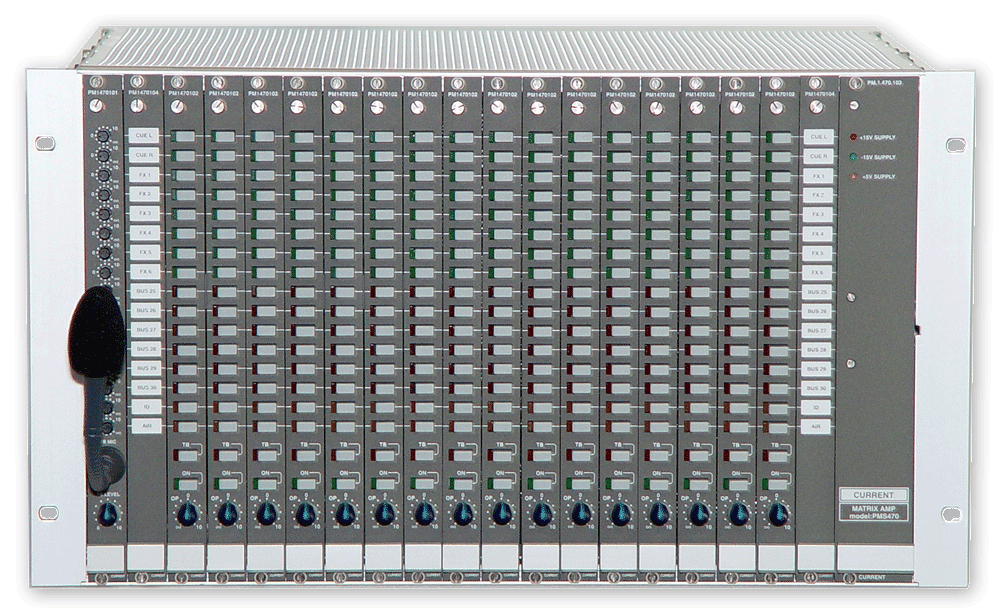

PMS470 is a matrix amplifier with 16 input routes and 16 output routes.
By a panel design with high visibility, it can do operation and the confirmation that are in a state quickly.
The application by various uses such as the distribution of the general audio, the distribution of the income system is possible.

“Master”
In the master module, adjustment of the matrix source level of 16 routes and the adjustment of the talkback level are possible.
It is possible for adjustment of the infinity to +10dB to source level.
In addition, as for the TB microphone, 150mm goose neck is a standard.

“Matrix”
It can assign a matrix module the source of 16 routes independently and the assigned signal is mixed and is output via output level control.
It is possible for the output level knob to adjustment of infinite repetition – +10dB.

“Meter”
It is providing the meter output to monitor the matrix output.
CSP116 of the 16ch meter is most suitable as an applying meter.

“GPI”
It can control a monitor speaker and Other equipment using the contact that is output when a TB button is pushed with either matrix module.

“Connector”
The input / output connector is Dsub25 for every 8ch.

“Others”
Please contact us as we also manufacture matrix amplifiers with different specifications. Also, consider 6×6 CSP332, 6×2 CSP336, and 6×14 type PMS420.

■ Specifications
•SOURCE INPUTS: 16
•INPUTS IMPEDANCE: BALANCED, >40kΩ
•INPUTS LEVEL: REF=+4dBu, MAX=+24dBu
•INPUTS CONNECTOR: Dsub25-F(#4-40) x2
•MATRIX OUTPUTS: 16
•OUTPUTS IMPEDANCE: BALANCED 50Ω
•OUTPUTS LEVEL: REF=+4dBu, MAX=+24dBu
•OUTPUTS CONNECTOR: Dsub25-M(#4-40) x2
•FREQUENCY RESPONSE: 20Hz~20kHz ±0.5dB
•THD: < 0.01% at 1kHz REFERENCE LEVEL
•MAINS: 100VAC 50/60Hz, 100W MAX
•DIMENSIONS: 483Wx266Hx350D, 8kg

  PMS470 “SOURCE INPUT 1-8″ D-25F(#4-40)
 1 SOURCE INPUT 1+   14 SOURCE INPUT 1-
 2 SOURCE INPUT 1G   15 SOURCE INPUT 2+
 3 SOURCE INPUT 2-   16 SOURCE INPUT 2G
 4 SOURCE INPUT 3+   17 SOURCE INPUT 3-
 5 SOURCE INPUT 3G   18 SOURCE INPUT 4+
 6 SOURCE INPUT 4-   19 SOURCE INPUT 4G
 7 SOURCE INPUT 5+   20 SOURCE INPUT 5-
 8 SOURCE INPUT 5G   21 SOURCE INPUT 6+
 9 SOURCE INPUT 6-   22 SOURCE INPUT 6G
10 SOURCE INPUT 7+   23 SOURCE INPUT 7-
11 SOURCE INPUT 7G   24 SOURCE INPUT 8+
12 SOURCE INPUT 8-   25 SOURCE INPUT 8G
 13
  PMS470 "SOURCE INPUT 9-16" D-25F(#4-40)
 1 SOURCE INPUT 9+   14 SOURCE INPUT 9-
 2 SOURCE INPUT 9G   15 SOURCE INPUT 10+
 3 SOURCE INPUT 10-  16 SOURCE INPUT 10G
 4 SOURCE INPUT 11+  17 SOURCE INPUT 11-
 5 SOURCE INPUT 11G  18 SOURCE INPUT 12+
 6 SOURCE INPUT 12-  19 SOURCE INPUT 12G
 7 SOURCE INPUT 13+  20 SOURCE INPUT 13-
 8 SOURCE INPUT 13G  21 SOURCE INPUT 14+
 9 SOURCE INPUT 14-  22 SOURCE INPUT 14G
10 SOURCE INPUT 15+  23 SOURCE INPUT 15-
11 SOURCE INPUT 15G  24 SOURCE INPUT 16+
12 SOURCE INPUT 16-  25 SOURCE INPUT 16G
13
  PMS470 "MATRIX OUTPUT 1-8" D-25M(#4-40)
 1 MATRIX OUTPUT 1+   14 MATRIX OUTPUT 1-
 2 MATRIX OUTPUT 1G   15 MATRIX OUTPUT 2+
 3 MATRIX OUTPUT 2-   16 MATRIX OUTPUT 2G
 4 MATRIX OUTPUT 3+   17 MATRIX OUTPUT 3-
 5 MATRIX OUTPUT 3G   18 MATRIX OUTPUT 4+
 6 MATRIX OUTPUT 4-   19 MATRIX OUTPUT 4G
 7 MATRIX OUTPUT 5+   20 MATRIX OUTPUT 5-
 8 MATRIX OUTPUT 5G   21 MATRIX OUTPUT 6+
 9 MATRIX OUTPUT 6-   22 MATRIX OUTPUT 6G
10 MATRIX OUTPUT 7+   23 MATRIX OUTPUT 7-
11 MATRIX OUTPUT 7G   24 MATRIX OUTPUT 8+
12 MATRIX OUTPUT 8-   25 MATRIX OUTPUT 8G
 13
  PMS470 "MATRIX OUTPUT 9-16" D-25M(#4-40)
 1 MATRIX OUTPUT 9+   14 MATRIX OUTPUT 9-
 2 MATRIX OUTPUT 9G   15 MATRIX OUTPUT 10+
 3 MATRIX OUTPUT 10-  16 MATRIX OUTPUT 10G
 4 MATRIX OUTPUT 11+  17 MATRIX OUTPUT 11-
 5 MATRIX OUTPUT 11G  18 MATRIX OUTPUT 12+
 6 MATRIX OUTPUT 12-  19 MATRIX OUTPUT 12G
 7 MATRIX OUTPUT 13+  20 MATRIX OUTPUT 13-
 8 MATRIX OUTPUT 13G  21 MATRIX OUTPUT 14+
 9 MATRIX OUTPUT 14-  22 MATRIX OUTPUT 14G
10 MATRIX OUTPUT 15+  23 MATRIX OUTPUT 15-
11 MATRIX OUTPUT 15G  24 MATRIX OUTPUT 16+
12 MATRIX OUTPUT 16-  25 MATRIX OUTPUT 16G
13
  PMS470 "METER SEND 1-8" D-25M(#4-40)
 1 METER SEND 1+   14 METER SEND 1-
 2 METER SEND 1G   15 METER SEND 2+
 3 METER SEND 2-   16 METER SEND 2G
 4 METER SEND 3+   17 METER SEND 3-
 5 METER SEND 3G   18 METER SEND 4+
 6 METER SEND 4-   19 METER SEND 4G
 7 METER SEND 5+   20 METER SEND 5-
 8 METER SEND 5G   21 METER SEND 6+
 9 METER SEND 6-   22 METER SEND 6G
10 METER SEND 7+   23 METER SEND 7-
11 METER SEND 7G   24 METER SEND 8+
12 METER SEND 8-   25 METER SEND 8G
 13
  PMS470 "METER SEND 9-16" D-25M(#4-40)
 1 METER SEND 9+   14 METER SEND 9-
 2 METER SEND 9G   15 METER SEND 10+
 3 METER SEND 10-  16 METER SEND 10G
 4 METER SEND 11+  17 METER SEND 11-
 5 METER SEND 11G  18 METER SEND 12+
 6 METER SEND 12-  19 METER SEND 12G
 7 METER SEND 13+  20 METER SEND 13-
 8 METER SEND 13G  21 METER SEND 14+
 9 METER SEND 14-  22 METER SEND 14G
10 METER SEND 15+  23 METER SEND 15-
11 METER SEND 15G  24 METER SEND 16+
12 METER SEND 16-  25 METER SEND 16G
13
  PMS470 "GPI" D-25F(#4-40)
 1 TB CONTACT A    14 TB CONTACT B
 2                 15
 3                 16
 4                 17
 5                 18
 6                 19
 7                 20
 8                 21
 9                 22
10                 23
11                 24
12                 25
13

• Order Information

order number description approx. price(US$)
PMS470 16x16 audio matrix, TB, I/O trim, 19” 6U $29,091
